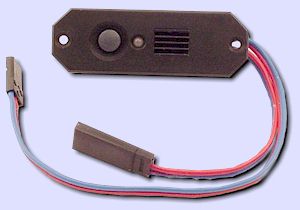

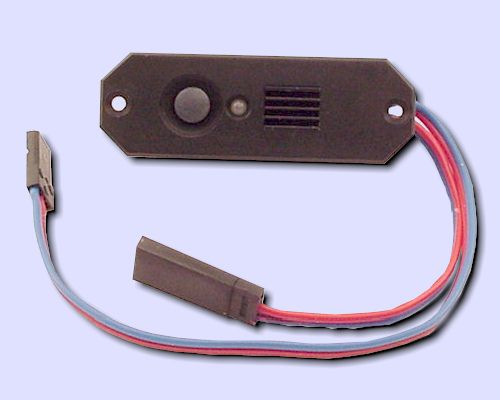

Digi-Switch
Digital Regulated Power Switch
Compare Models
  • Electronic Digital Switch
  • Switch design is low-profile to avoid
    accidental operation
    (no more accidental shut-off / turn-on)
  • Multi-color LED indicates voltage level
  • Low voltage alert
    status LED's report low voltage condition
  • Ideal soution for smaller models like jets, smaller airplanes, gliders, helicopters, boats and cars
  • Perfect for gas motor electronic ignition systems that can't use direct input of LiPo or LiIon voltages like older 3W ignitions, BME, Brison, C&H, and Desert Aircraft ignitions.
Max. Constant Current:
3 to 5 Amps
(Depending on Cooling)
Input Voltage:
up to 8.40 Volts
(2 Cell LiPo or LiIon)
Output Voltage:
5.50 Volts
(Equates to a peak charged 4-cell NiMh)
Temperature Range:
14° F to 131° F
Working Voltage:
6.0 V to 11.1 V
Current Drain:
60 mA
Voltage Loss:
0.2 V
Weight:
0.50 oz.

Applications:

  • Small to medium sized aircraft
    with up to 6 servos     **
  • Model gliders with up to 10 servos **
  • Helicopters .60 - .90 size
  • Electric helicopters
  • RC Cars
  • RC Boats
  • F3A models
  • Ignition systems designed for 4-cell
    NiCD / NiMh battery operation

[ ** Depending on servo size ]

Using The Switch:

Press and hold the button for about a half of a second until the LED glows orange.

Now release and quickly press the button again.
The LED will turn Green. The switch is now on.

To turn off the switch, press and hold the button for about a half of a second until the LED glows orange. Briefly release and quickly press the button again. The LED will turn off. The switch is now off.

When the battery is initally connected to the switch, the switch will initially turn itself on. The LED will glow green. This indicates proper operation.

Low Voltage Indication:

Green
=
AOK
Yellow
=
Warning
Red
=
Land
Flashing Red
=
Critical Low Battery!

Price:
$ 60.00
