Specifications
Subject To
Change Without Notice |
| | |
Operating
Voltage: |
 4.0 V to 9.0 V | |
Temperature
Range: |
-10°C to +65°C | |
Current Capacity: | 40
Amp (2 x 20A) | |
Receiver Voltage: | 5.0
V | |
Servo Voltage: | 5.9
V or 7.0 V | |
Servo Matching: | 5
Channels | |
Servo Connections: | 26 | |
Current Drain: | 80mA
without LCD
200mA
with LCD | |
Panel Weight: | 4.69
oz / 133 g |
Panel, Switch, LCD
Total
Weight: | 7.58
oz / 215 g | |
Preferred Battery: | Li
Ion / LiPo 7.2 V |
| | | | 4x
Increased Heatsink Size
To Support Monster Servo Loads Digital
Intelligent Servo Matching Dual
Receiver RRS Module Built-In
Linear Regulated Servo Voltage
Adjustable (5.9v or 7.0v) - Linear
Regulated Receiver Voltage

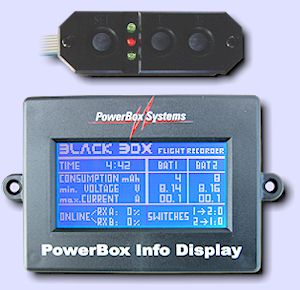

for Both Receivers (5.0v) LCD
Backlit Data Display for
On-Board Data Logger Monitors:
-
Battery Capacity Display ('Fuel' Gages)
- Highest and Lowest Voltage & Amperage
-
Current drain reading of entire system
-
Current drain of individual servos
- Number
of RRS Receiver Switch-Overs
- Percentage of Receiver Usage
- Total Airframe
Time ('Hobbs' Meter) 2
Ultra Bright External Warning LEDs Includes
Digital Safety Switch Simpifies
Large Aircraft
Radio Installation
|
| | | | | |
|
The Best
Protection For Your Investment
