The Best Protection For Your Investment
Saving Aircraft World-Wide Every Single Day



Specifications Subject To
Change Without Notice



Operating Voltage:
4.0 V to 9.0 V
Temperature Range:
-10°C to +65°C
Current Capacity:
40 Amp (2 x 20A)
Receiver Voltage:
5.0 V
Servo Voltage:
5.9 V or 7.0 V
Servo Matching:
3 Channels
Servo Connections:
24
Current Drain:
90mA without LCD
Panel Weight:
4.69 oz / 133 g
Panel & Switch
Total Weight:
7.58 oz / 215 g
Preferred Battery:
Li Ion / LiPo 7.2 V

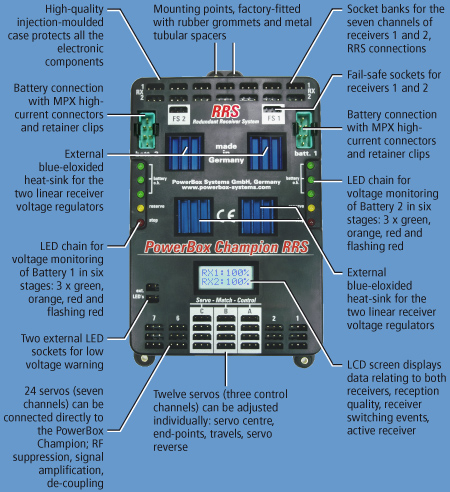

  • 4x Increased Heatsink Size
    To Support Monster Servo Loads
  • Dual Receiver RRS Module Built-In
  • Linear Regulated Servo Voltage
    Adjustable (5.9v or 7.0v)
  • Linear Regulated Receiver Voltage
    for Both Receivers (5.0v)
  • RRS LCD Display for:
    - Number of RRS Receiver Switch-Overs
    - Percentage of Receiver Usage
  • 2 LED Battery Level Indicators
  • 2 Ultra Bright External Warning LEDs
  • Includes Digital Safety Switch
  • Simpifies Large Aircraft
    Radio Installation

© Copyright - Aircraft International, Inc. - All Rights Reserved
