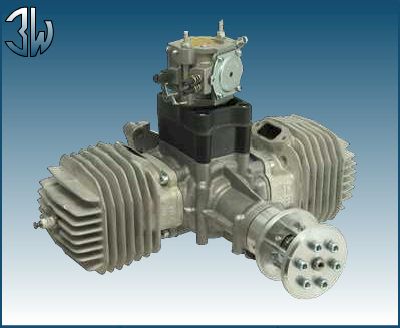

3W-140iB2/F

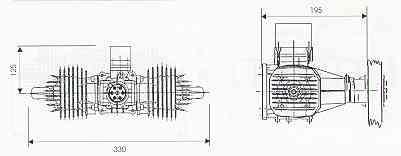

Specifications Sheet





Download Instruction Manual



  Cylinder Capacity 8.39 cu.in 137.6 ccm
  Power Rating 13.5 HP 10 kW
  Bore Diameter 1.88 in 48 mm
  Stroke 1.49 in 38 mm
  Weight 8.58lbs 3900 g
  Speed Range 8500 RPM
  Crankshaft 3 Ball bearings
  Connecting Rod Needle bearings on both ends
  Oil / Gasoline Ratio 1:50 - 1:80 Mix
  Ignition Input Voltage: 6.0 to 8.0 V
6.0 V NiCD / NiMH or 7.2 V LiPo / Li Ion
  Propeller 2-Bladed
28 x 12
30 x 10
30 x 12		 3-Bladed
26 x 14
27 x 12
